教你Node.js+SpreadJS从服务端生成Excel电子表格
2352
Node是一个基于Chrome V8引擎的JavaScript运行环境，通常用于创建网络应用程序。它可以同时处理多个连接，并且不像其他大多数模型那样依赖线程。
对于 Web 开发者来说，从数据库或Web服务器获取数据，然后输出到Excel文件以进行进一步分析的场景时有发生。我们的技术团队在跟国内外各行各业用户交流的过程中，就曾发现有很多的用户尝试在Node.js的环境下运行SpreadJS 纯前端表格控件，借助该控件，可以在服务器不预装任何Excel依赖项的情况下，收集用户输入的信息，并将其自动导出到Excel文件中。
为了满足广大技术爱好者的需要，同时减少大家在未来技术选型方面所走的弯路，本文将就SpreadJS 与 Node.js之间的技术性方案进行探讨！
一、安装 SpreadJS 和 Node .js
首先，我们需要安装Node.js以及Mock-Browser，BufferJS和FileReader，大家可以前往以下链接进行下载，同步操作：
我们将使用Visual Studio创建应用程序。打开Visual Studio后，使用JavaScript> Node.js>Blank Node.js控制台应用程序模板创建一个新应用程序。这将自动创建所需的文件并打开" app.js"文件，也是我们将要更改的唯一文件。
对于BufferJS库，您需要下载该软件包，然后通过导航到项目文件夹（一旦创建）并运行以下命令，将其手动安装到项目中：
npm install
安装完成后，您可能需要打开项目的package.json文件并将其添加到" dependencies"部分。文件内容应如下所示：
{
"name": "spread-sheets-node-jsapp",
"version": "0.0.0",
"description": "SpreadSheetsNodeJSApp",
"main": "app.js",
"author": {
"name": "admin"
},
"dependencies": {
"FileReader": "^0.10.2",
"bufferjs": "1.0.0",
"mock-browser": "^0.92.14"
}
}在此示例中，我们将使用Node.js的文件系统模块。我们可以将其加载到：
var fs = require('fs')为了将SpreadJS与Node.js结合使用，我们还需要加载已安装的Mock-Browser：
var mockBrowser =require('mock-browser').mocks.MockBrowser在加载SpreadJS脚本之前，我们需要初始化模拟浏览器。初始化我们稍后在应用程序中可能需要使用的变量，尤其是" window"变量：
global.window =mockBrowser.createWindow() global.document = window.document global.navigator = window.navigator global.HTMLCollection =window.HTMLCollection global.getComputedStyle =window.getComputedStyle
初始化FileReader库：
var fileReader = require('filereader');
global.FileReader = fileReader;二、使用SpreadJS npm 包
将SpreadJS安装文件中的SpreadJS Sheets和ExcelIO包添加到项目中。
您可以通过右键单击解决方案资源管理器的" npm"部分并将它们添加到您的项目中，然后选择"安装新的NPM软件包"。您应该能够搜索" GrapeCity"并安装以下2个软件包：
@grapecity/spread-sheets @grapectiy/spread-excelio
将SpreadJS npm软件包添加到项目后，正确的依赖关系将被写入package.json：
{
"name": "spread-sheets-node-jsapp",
"version": "0.0.0",
"description": "SpreadSheetsNodeJSApp",
"main": "app.js",
"author": {
"name": "admin"
},
"dependencies":{
"@grapecity/spread-excelio": "^11.2.1",
"@grapecity/spread-sheets": "^11.2.1",
"FileReader": "^0.10.2",
"bufferjs": "1.0.0",
"mock-browser": "^0.92.14"
}
}现在我们需要在app.js文件中引入它：
var GC =require('@grapecity/spread-sheets')
var GCExcel =require('@grapecity/spread-excelio');使用npm软件包时，还需要设置许可证密钥（点击此处，免费申请许可证密钥）：
GC.Spread.Sheets.LicenseKey ="<YOUR KEY HERE>"
在这个特定的应用程序中，我们将向用户显示他们正在使用哪个版本的SpreadJS。为此，我们可以引入package.json文件，然后引用依赖项以获取版本号：
var packageJson =require('./package.json')
console.log('\n** Using Spreadjs Version"' + packageJson.dependencies["@grapecity/spread-sheets"] +'" **')三、将 Excel 文件加载到您的 Node.js 应用程序中
点击此处，下载现成的Excel模板文件，该文件包含了从用户那里获取数据。接下来，将数据放入文件中并导出。在这种情况下，文件是用户可以编辑的状态。
初始化工作簿和ExcelIO变量：
var wb = new GC.Spread.Sheets.Workbook(); var excelIO = new GCExcel.IO();
我们在读取文件时将代码包装在try / catch块中。然后，初始化变量" readline"，让您读取用户输入到控制台的数据。接下来，我们将其存储到一个JavaScript数组中，以便轻松填写Excel文件：
// Instantiate the spreadsheet and modifyit
console.log('\nManipulatingSpreadsheet\n---');
try {
var file = fs.readFileSync('./content/billingInvoiceTemplate.xlsx');
excelIO.open(file.buffer, (data) => {
wb.fromJSON(data);
const readline = require('readline');
var invoice = {
generalInfo: [],
invoiceItems: [],
companyDetails: []
};
});
} catch (e) {
console.error("** Error manipulating spreadsheet **");
console.error(e);

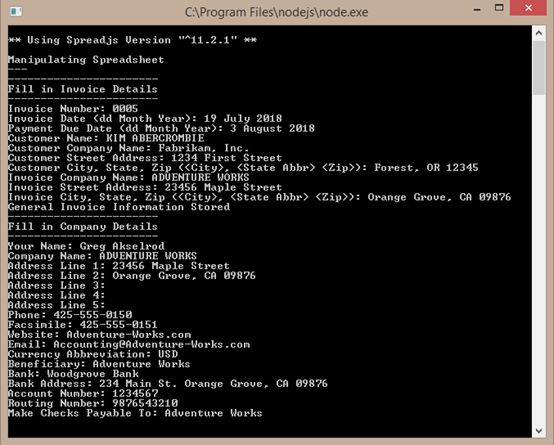

}四、收集用户输入信息

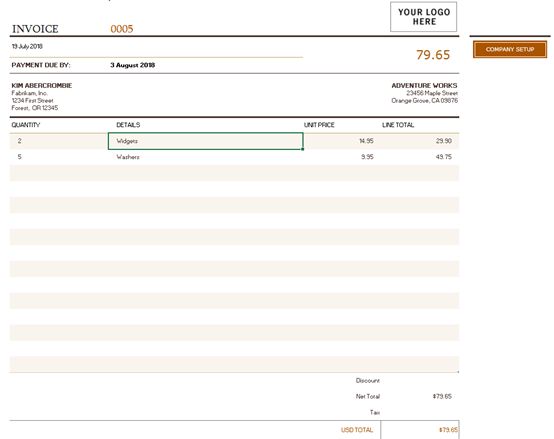

上图显示了我们正在使用的Excel文件。我们可以在excelio.open调用中创建一个单独的函数，以在控制台中提示用户需要的每一项内容。我们也可以创建一个单独的数组，将数据保存到每个输入后，然后将其推送到我们创建的invoice.generalInfo数组中：
fillGeneralInformation();
function fillGeneralInformation() {
console.log("-----------------------\nFill in InvoiceDetails\n-----------------------")
const rl = readline.createInterface({
input: process.stdin,
output: process.stdout
});
var generalInfoArray = [];
rl.question('Invoice Number: ', (answer) => {
generalInfoArray.push(answer);
rl.question('Invoice Date (dd Month Year): ', (answer) => {
generalInfoArray.push(answer);
rl.question('Payment Due Date (ddMonth Year): ', (answer) => {
generalInfoArray.push(answer);
rl.question('Customer Name: ',(answer) => {
generalInfoArray.push(answer);
rl.question('CustomerCompany Name: ', (answer) => {
generalInfoArray.push(answer);
rl.question('Customer Street Address:', (answer) => {
generalInfoArray.push(answer);
rl.question('Customer City, State, Zip (<City>, <State Abbr><Zip>): ', (answer) => {
generalInfoArray.push(answer);
rl.question('Invoice Company Name: ', (answer) => {
generalInfoArray.push(answer);
rl.question('Invoice Street Address: ', (answer) => {
generalInfoArray.push(answer);
rl.question('Invoice City, State, Zip (<City>, <State Abbr><Zip>): ', (answer) => {
generalInfoArray.push(answer);
rl.close();
invoice.generalInfo.push({
"invoiceNumber": generalInfoArray[0],
"invoiceDate": generalInfoArray[1],
"paymentDueDate": generalInfoArray[2],
"customerName": generalInfoArray[3],
"customerCompanyName": generalInfoArray[4],
"customerStreetAddress": generalInfoArray[5],
"customerCityStateZip": generalInfoArray[6],
"invoiceCompanyName": generalInfoArray[7],
"invoiceStreetAddress": generalInfoArray[8],
"invoiceCityStateZip": generalInfoArray[9],
});
console.log("General Invoice Information Stored");
fillCompanyDetails();
});
});
});
});
});
});
});
});
});
});
}该函数被称为" fillCompanyDetails"，目的是收集有关公司的信息以填充到工作簿的第二张表中：
function fillCompanyDetails() {
console.log("-----------------------\nFill in CompanyDetails\n-----------------------")
const rl = readline.createInterface({
input: process.stdin,
output: process.stdout
});
var companyDetailsArray = []
rl.question('Your Name: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Company Name: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Address Line 1: ',(answer) => {
companyDetailsArray.push(answer);
rl.question('Address Line 2: ',(answer) => {
companyDetailsArray.push(answer);
rl.question('Address Line3: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('AddressLine 4: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Address Line 5: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Phone: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Facsimile: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Website: ', (answer)=> {
companyDetailsArray.push(answer);
rl.question('Email: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Currency Abbreviation: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Beneficiary: ',(answer) => {
companyDetailsArray.push(answer);
rl.question('Bank: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Bank Address: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Account Number: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('RoutingNumber: ', (answer) => {
companyDetailsArray.push(answer);
rl.question('Make Checks Payable To: ', (answer) => {
companyDetailsArray.push(answer);
rl.close();
invoice.companyDetails.push({
"yourName": companyDetailsArray[0],
"companyName": companyDetailsArray[1],
"addressLine1": companyDetailsArray[2],
"addressLine2": companyDetailsArray[3],
"addressLine3": companyDetailsArray[4],
"addressLine4": companyDetailsArray[5],
"addressLine5": companyDetailsArray[6],
"phone":companyDetailsArray[7],
"facsimile": companyDetailsArray[8],
"website":companyDetailsArray[9],
"email": companyDetailsArray[10],
"currencyAbbreviation":companyDetailsArray[11],
"beneficiary": companyDetailsArray[12],
"bank":companyDetailsArray[13],
"bankAddress": companyDetailsArray[14],
"accountNumber": companyDetailsArray[15],
"routingNumber": companyDetailsArray[16],
"payableTo": companyDetailsArray[17]
});
console.log("Invoice Company Information Stored");
console.log("-----------------------\nFillin Invoice Items\n-----------------------")
fillInvoiceItemsInformation();
});
});
});
});
});
});
});
});
});
});
});
});
});
});
});
});
});
});
}
现在我们已经有了用户的基本信息，我们可以集中精力收集单个项目，并另命名为" fillInvoiceItemsInformation"函数。在每个项目执行之前，我们会询问用户是否要添加一个项目。如果他们继续输入" y"，那么我们将收集该项目的信息，然后再次询问直到他们键入" n"：
function fillInvoiceItemsInformation() {
const rl = readline.createInterface({
input: process.stdin,
output: process.stdout
});
var invoiceItemArray = [];
rl.question('Add item?(y/n): ', (answer) => {
switch (answer) {
case "y":
console.log("-----------------------\nEnter ItemInformation\n-----------------------");
rl.question('Quantity: ',(answer) => {
invoiceItemArray.push(answer);
rl.question('Details: ',(answer) => {
invoiceItemArray.push(answer);
rl.question('UnitPrice: ', (answer) => {
invoiceItemArray.push(answer);
invoice.invoiceItems.push({
"quantity":invoiceItemArray[0],
"details": invoiceItemArray[1],
"unitPrice": invoiceItemArray[2]
});
console.log("ItemInformation Added");
rl.close();
fillInvoiceItemsInformation();
});
});
});
break;
case "n":
rl.close();
return fillExcelFile();
break;
default:
console.log("Incorrectoption, Please enter 'y' or 'n'.");
}
});
}五、填入您的Excel 文件
在收集所有必需的用户信息后，我们可以将其填入到Excel文件中：
function fillExcelFile() {
console.log("-----------------------\nFilling in Excelfile\n-----------------------");
fillBillingInfo();
fillCompanySetup();
}
function fillBillingInfo() {
var sheet = wb.getSheet(0);
sheet.getCell(0, 2).value(invoice.generalInfo[0].invoiceNumber);
sheet.getCell(1, 1).value(invoice.generalInfo[0].invoiceDate);
sheet.getCell(2, 2).value(invoice.generalInfo[0].paymentDueDate);
sheet.getCell(3, 1).value(invoice.generalInfo[0].customerName);
sheet.getCell(4, 1).value(invoice.generalInfo[0].customerCompanyName);
sheet.getCell(5, 1).value(invoice.generalInfo[0].customerStreetAddress);
sheet.getCell(6, 1).value(invoice.generalInfo[0].customerCityStateZip);
sheet.getCell(3, 3).value(invoice.generalInfo[0].invoiceCompanyName);
sheet.getCell(4, 3).value(invoice.generalInfo[0].invoiceStreetAddress);
sheet.getCell(5, 3).value(invoice.generalInfo[0].invoiceCityStateZip);
}
function fillCompanySetup() {
var sheet = wb.getSheet(1);
sheet.getCell(2, 2).value(invoice.companyDetails[0].yourName);
sheet.getCell(3, 2).value(invoice.companyDetails[0].companyName);
sheet.getCell(4, 2).value(invoice.companyDetails[0].addressLine1);
sheet.getCell(5, 2).value(invoice.companyDetails[0].addressLine2);
sheet.getCell(6, 2).value(invoice.companyDetails[0].addressLine3);
sheet.getCell(7, 2).value(invoice.companyDetails[0].addressLine4);
sheet.getCell(8, 2).value(invoice.companyDetails[0].addressLine5);
sheet.getCell(9, 2).value(invoice.companyDetails[0].phone);
sheet.getCell(10, 2).value(invoice.companyDetails[0].facsimile);
sheet.getCell(11, 2).value(invoice.companyDetails[0].website);
sheet.getCell(12, 2).value(invoice.companyDetails[0].email);
sheet.getCell(13, 2).value(invoice.companyDetails[0].currencyAbbreviation);
sheet.getCell(14, 2).value(invoice.companyDetails[0].beneficiary);
sheet.getCell(15, 2).value(invoice.companyDetails[0].bank);
sheet.getCell(16, 2).value(invoice.companyDetails[0].bankAddress);
sheet.getCell(17, 2).value(invoice.companyDetails[0].accountNumber);
sheet.getCell(18, 2).value(invoice.companyDetails[0].routingNumber);
sheet.getCell(19, 2).value(invoice.companyDetails[0].payableTo);
}为了防止用户添加的数量超过工作表最大行数，我们可以在工作表中自动添加更多行。在设置数组中表单中的项目之前，默认添加行：
function fillInvoiceItems() {
var sheet = wb.getSheet(0);
var rowsToAdd = 0;
if (invoice.invoiceItems.length > 15) {
rowsToAdd = invoice.invoiceItems.length - 15;
sheet.addRows(22, rowsToAdd);
}
var rowIndex = 8;
if (invoice.invoiceItems.length >= 1) {
for (var i = 0; i < invoice.invoiceItems.length; i++) {
sheet.getCell(rowIndex,1).value(invoice.invoiceItems.quantity);
sheet.getCell(rowIndex,2).value(invoice.invoiceItems.details);
sheet.getCell(rowIndex,3).value(invoice.invoiceItems.unitPrice);
rowIndex++;
}
}
}六、将文档内容从 Node.js 导出到 Excel 文件
在工作簿中填写完信息后，我们可以将工作簿导出到Excel文件中。为此，我们将使用excelio打开功能。在这种情况下，只需将日期输入文件名即可：
function exportExcelFile() {
excelIO.save(wb.toJSON(), (data) => {
fs.appendFileSync('Invoice' + new Date().valueOf() + '.xlsx', newBuffer(data), function (err) {
console.log(err);
});
console.log("Export success");
}, (err) => {
console.log(err);
}, { useArrayBuffer: true });

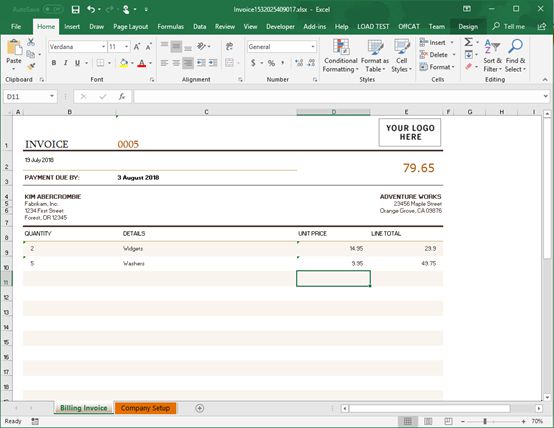

}完成的文件将如下所示：
本文网址：https://www.zztuku.com/detail-13052.html
站长图库 - 教你Node.js+SpreadJS从服务端生成Excel电子表格
申明：本文转载于《博客园》，如有侵犯，请 联系我们 删除。
您还没有登录，请 登录 后发表评论！
提示：请勿发布广告垃圾评论，否则封号处理！！
